More body work

Moving into a new phase the front panel work now needs attention.
Inner guards battery tray all front bar brackets.
All need sand blasting and paint.
Also at this stage we will look at the radiator horn ect.
All these parts have been trial fitted.

GTS Steering box

Steering box rebuilt as new.
Thanks to Terry at Bebco Automotive.
He will also re manufacture your brake lines and fuel lines.

Engine in

GTS Wheels Australian made

The Australian made rims are different in more ways then one in comparison to the early Canadian rims.
The Australian rims are painted black on the inside also the are stitch welded rather than spot welded like the Canadian rim.
The outer pressing are also different.
These early Australian rims have no external markings they are all on the inside.
Later model Australian rims are marked on the outside near the valve.
This seemed to happen sometime in 1977.

Front brakes fitted

Note the red brown on the caliper.

Front brakes GTS

Rear brakes

Removed from paint frame 29/12/10

Note the bump rubbers these are all genuine holden. They all have no paint on the steel sections.
The bolts are finished in black zinc.
Make sure to coat the underside with Tectyl 506 or similar to prevent rust.

Diff Progress

Diff progess

Front suspension

FRAME FITTING

FRAME FITTING

Bare metal floor

Here are some photos of the preparation involved in painting inside your boot correctly.
From here it is approximately 50 to 70 hours.
Take note on the RH Rear 1/4 panel the puddle of brass. Car manufactures are A grade at this type of work .
Those of you that know what brass can do will appreciate the high quality of work the car manufactures can do.

50 + HOURS

Diff ID 3.08

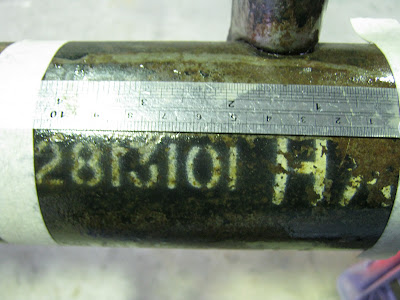

Here is what I found on the diff housing.
Hard to see the numbers but here we go 2813101 HA
The HA is correct. This would be used on the build sheet.
